Mud pump unit, an absolutely necessary part to transport drilling fluid, combines the pump with its engine for barge installation. Its reasonable design and unique substructure result in small size and light weight for the best yet in portability and convenient placement and removal, plus less wearable parts as another advantage. And it is highly adjustable with close control and remote control capabilities. It is very practical, as it works under various conditions, such as service work, well of different depth, land operation and drilling or service platform offshore.

Our products

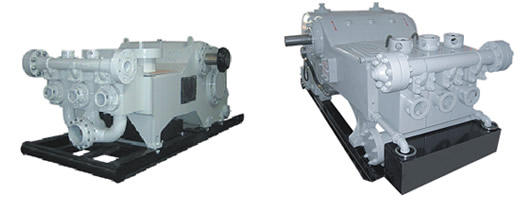

PZ-9 Triplex Single Action Mud Pump

Specification:

Type

PZ-9

Input power rating

1000HP

Rated pump speed (SPM)

156

Stroke (mm)

9”

Gear ratio

4.483:1

Rated speed of transmission shaft (RPM)

699

Max. working pressure

5320PSI

Valve size (API)

7

Max. liner diameter

Φ7”

Max. displacement (l/s)

702

Max. liner pressure

2198PSI

Diameter of suction pipe

10”

Diameter of discharge pipe

4”

Overall dimensions

134”x95”x110”

Weight (lb.)

34178
